Description
Overview

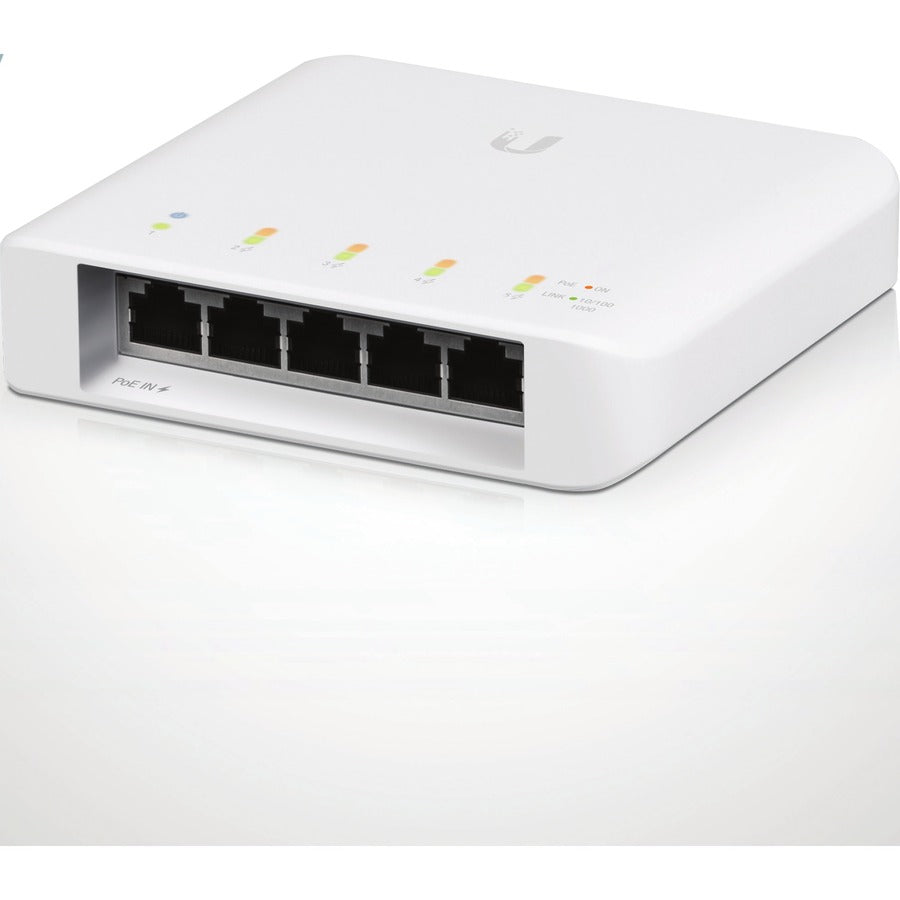

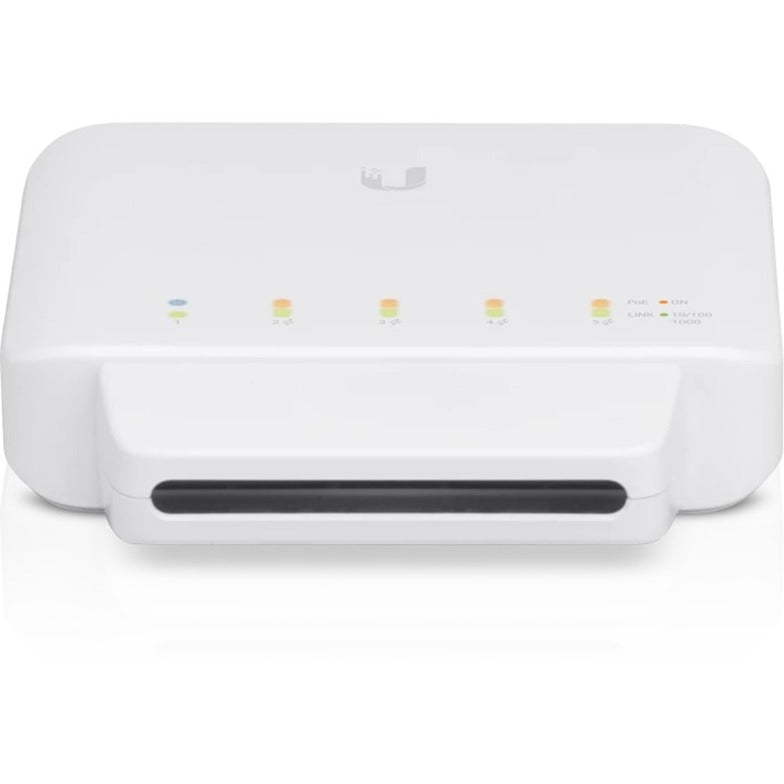

Build and expand your network with the
UniFi® Switch Flex, model USW-Flex. It is a
configurable Layer 2 Gigabit switch with
auto-sensing 802.3at PoE. Five RJ45 Gigabit
Ethernet ports provide one PoE input and
four PoE output links to your devices.
Switching Performance
The USW-Flex offers the forwarding capacity
to simultaneously process traffic on all ports
at line rate without any packet loss.
PoE Flexibility

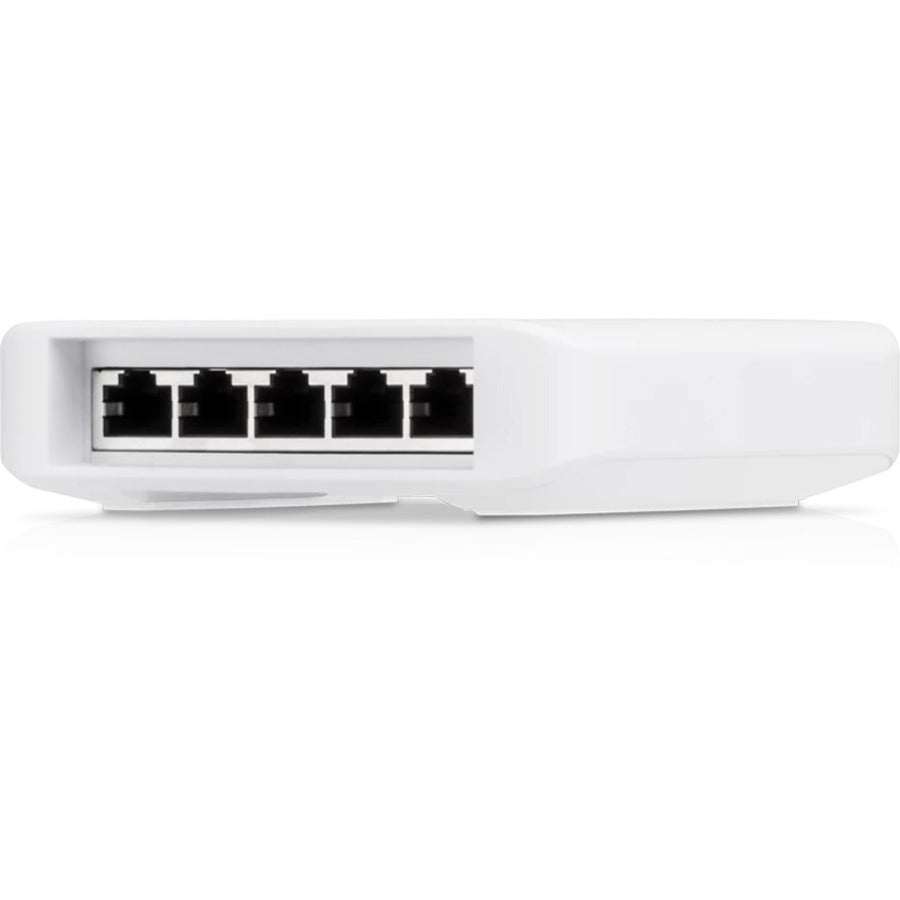

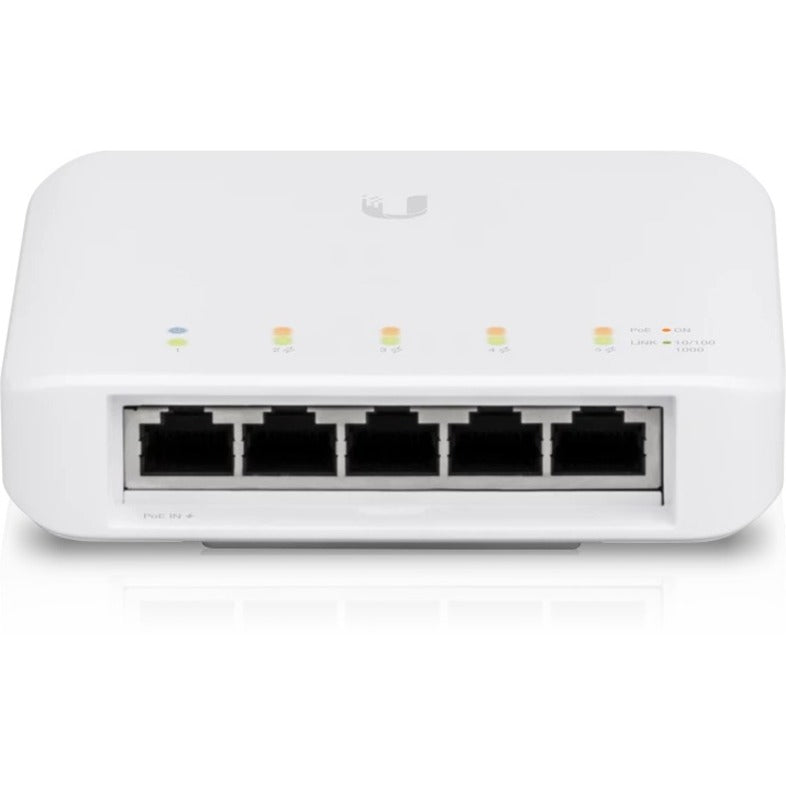

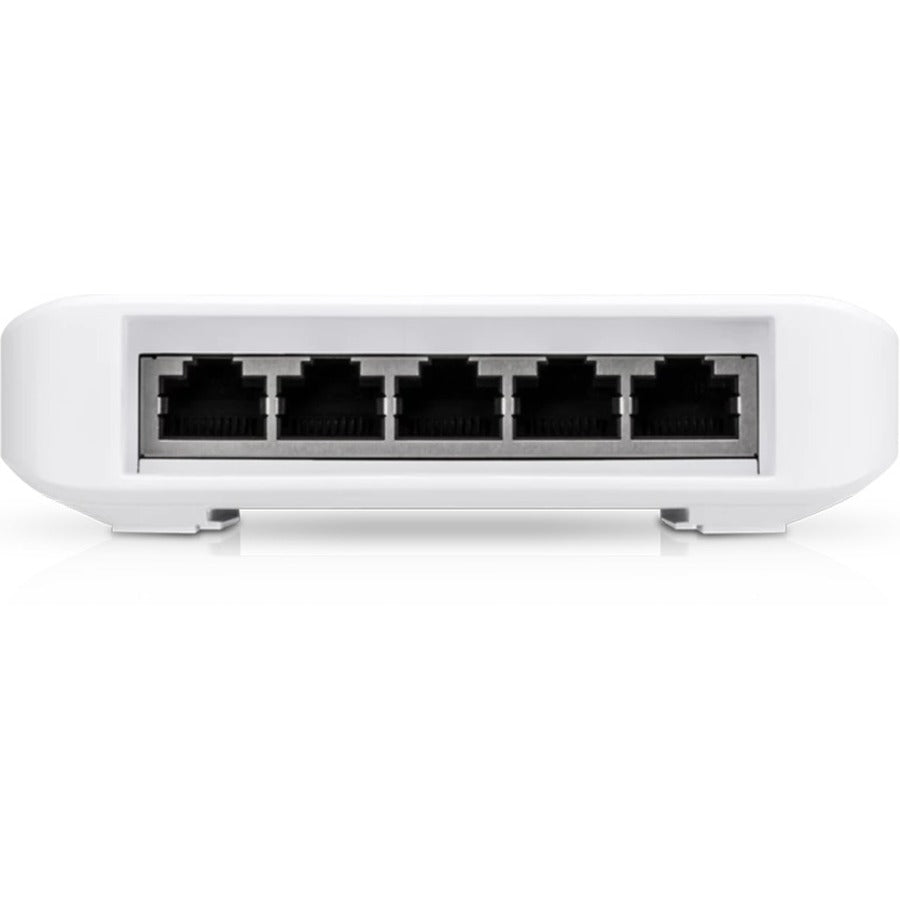

The USW-Flex features five Gigabit RJ45
ports to deliver robust performance and
intelligent switching for your network.
Port 1 provides PoE input while ports 2-5
offer 802.3at PoE and provide up to 25W
of power for your PoE devices. Products
requiring 802.3at, such as G3 Flex cameras,
are supported.

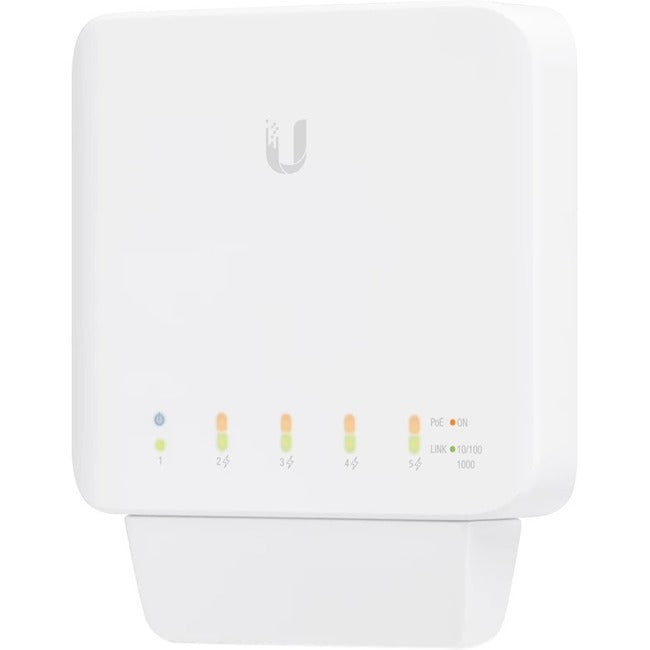

Indoor/Outdoor Design

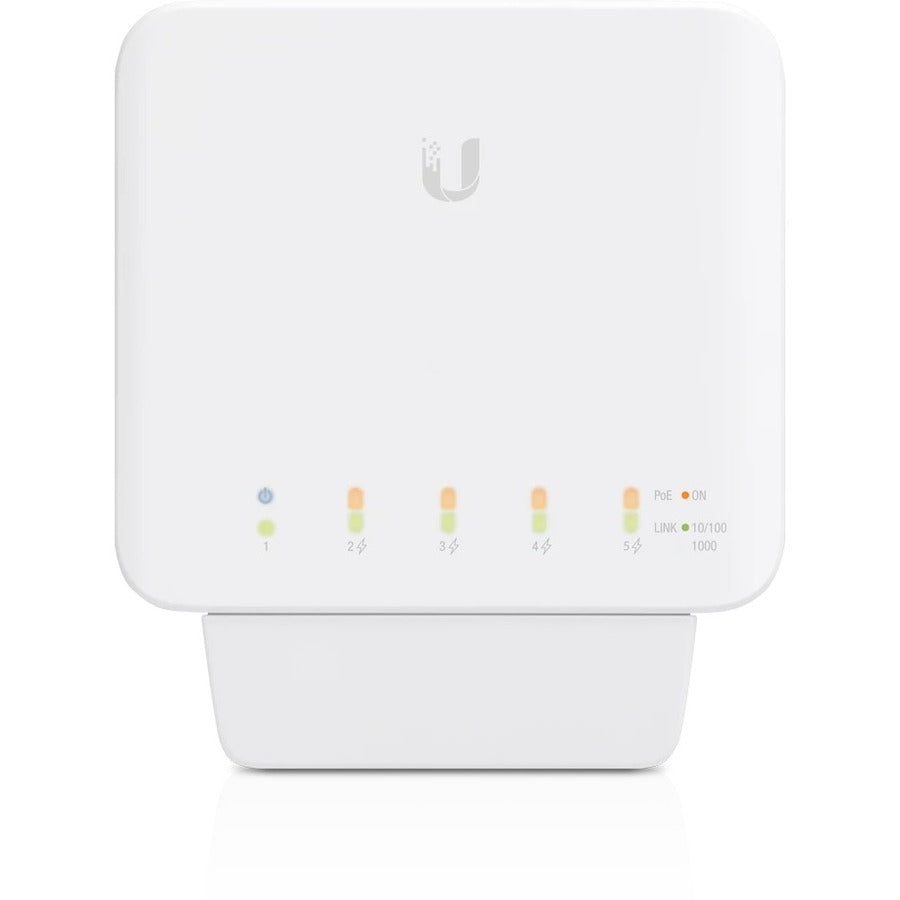

The USW-Flex can be installed horizontally
or vertically and offers versatile mounting
options: desktop, wall, and pole.
The weather-resistant USW-Flex can
withstand extreme temperature variations.
If the USW-Flex is installed at an exposed
location outdoors, we recommend the UniFi
Switch Flex Utility, model USW-Flex-Utility,
which is designed for use with the USW-Flex.
Outdoor Enclosure Accessory

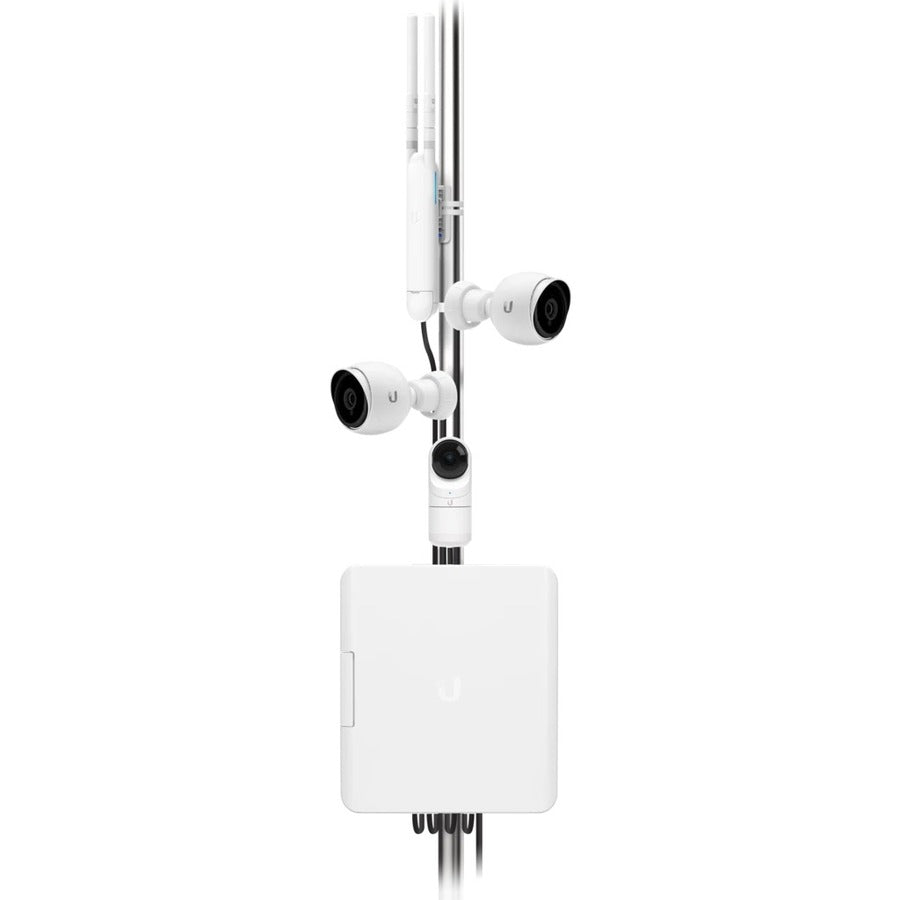

An outdoor weatherproof enclosure, the
USW Flex Utility, is available as an optional
accessory. It includes an Ethernet patch
cable and a 60W PoE adapter, which
provides a maximum PoE budget of 46W.
Easily mounted on a pole, the USW Flex
Utility provides clean cable management
and a screw lock for security.
- Auto-Sensing IEEE 802.3af PoE Ports
- Lightweight, Weatherproof Housing
- Indoor/Outdoor Design with Versaltile Mounts
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Power Source : PoE
- Layer Supported : 2
- Port/Expansion Slot Details : 5 x Gigabit Ethernet PoE
- Modular : No
- Limited Warranty : 1 Year
- Form Factor : Desktop,Wall Mountable,Pole Mount
- Manufacturer Website Address : http://www.ui.com
- Product Type : Ethernet Switch
- Manufacturer : Ubiquiti Inc.
- Product Model : USW-Flex
- Total Number of Network Ports : 5
- Media Type Supported : Twisted Pair
- Network Technology : 1000Base-T
