Description
Advanced Switching Technology for the Masses

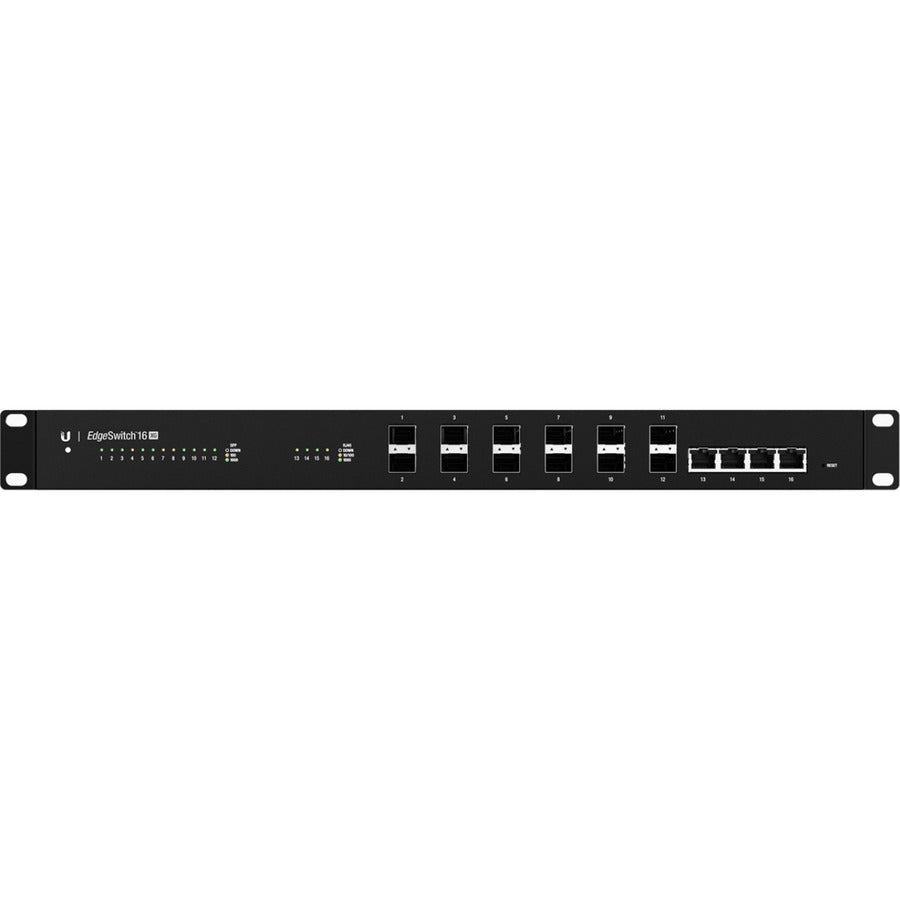

Build and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services togrowing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.
10G High-Capacity Links
The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
Build and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services togrowing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.
10G High-Capacity Links
The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
- DiffServ, CoS
- Static Routing, Policy-Based Routing
- DHCP Server Functionality
- 10G Ethernet SFP+ and RJ45 Ports
- Maximum Performance and Low Latency
- Non-Blocking Throughput Switching
- Power Source : Power Supply,AC Adapter
- Modular : Yes
- Form Factor : Rack-mountable,Standalone
- Manufacturer Website Address : http://www.ui.com
- Uplink Port : No
- Manufacturer : Ubiquiti Inc.
- Product Model : ES-16-XG
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 10GBase-X,10GBase-T
- Redundant Power Supply Supported : Yes
- Ethernet Technology : 10 Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 3
- Shared SFP Slot : No
- Port/Expansion Slot Details : 12 x 10 Gigabit Ethernet Expansion Slot,4 x 10 Gigabit Ethernet Network
- Limited Warranty : 1 Year
- Product Type : Ethernet Switch
- Stack Port : No
- Number of Total Expansion Slots : 12
- Total Number of Network Ports : 4
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : China
- Product Line : EdgeSwitch
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 12
