Description

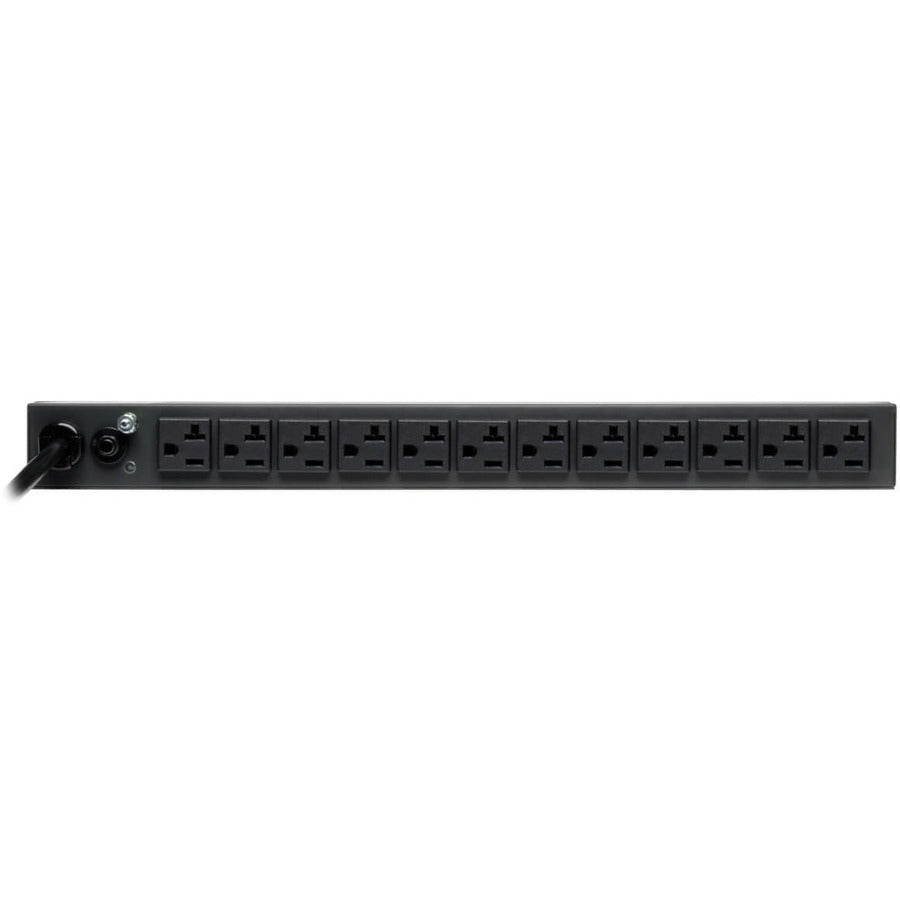

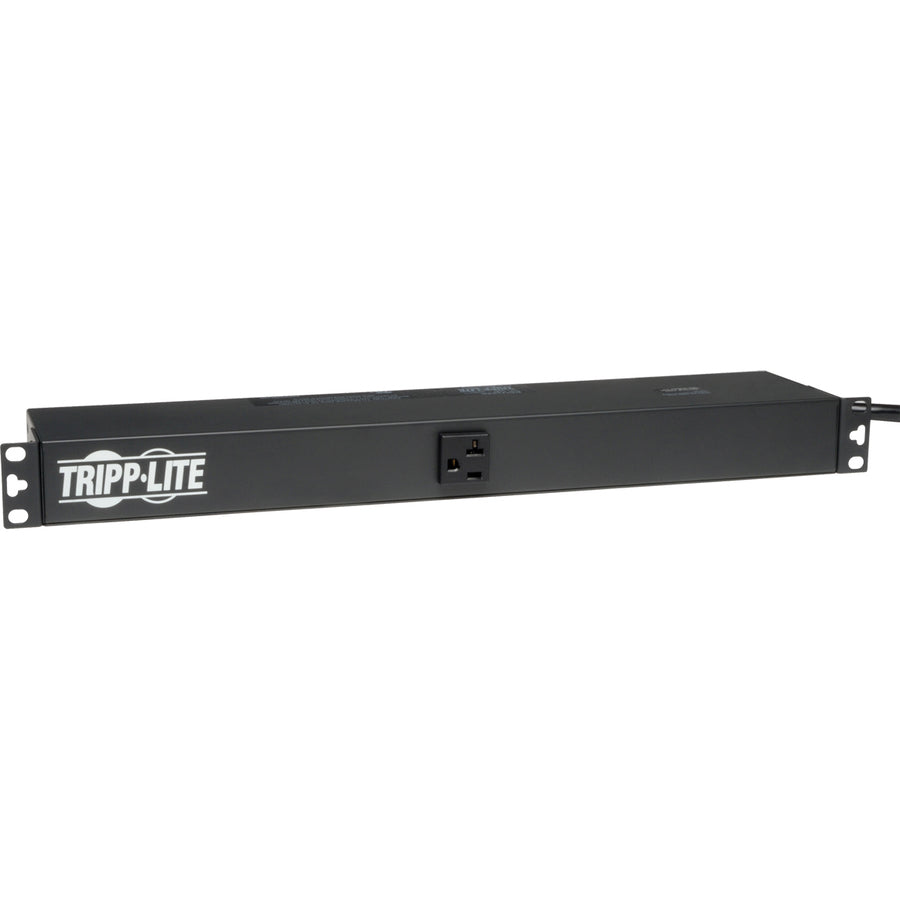

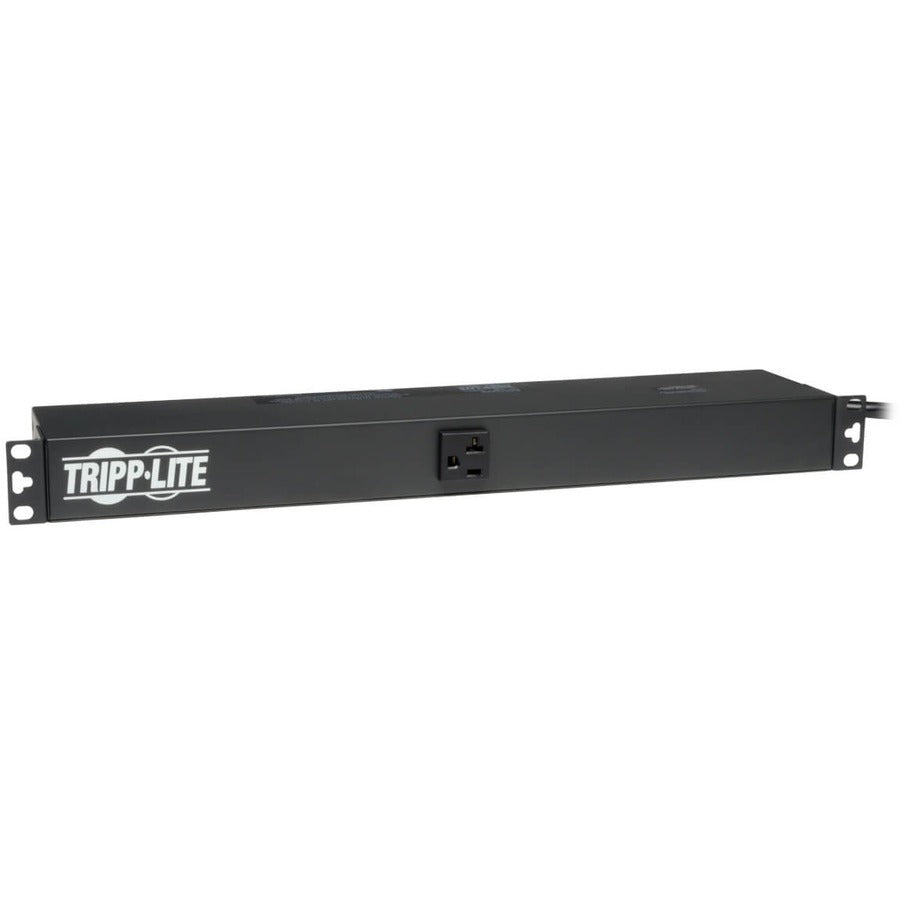

Tripp Lite's PDU1220 AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing outlets and one front-facing, 15 ft AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA 5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA 5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- 1U horizontal rackmount installation

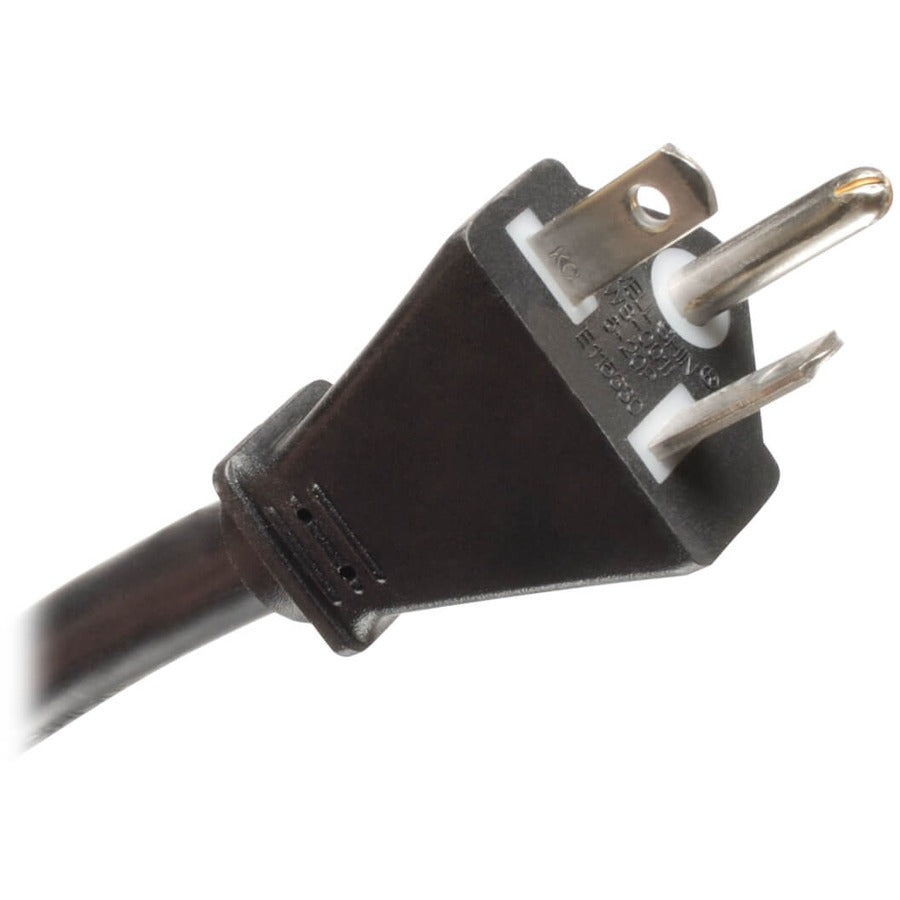

- NEMA 5-20P input; 15 ft. / 4.5m line cord
- Basic single phase 20A 120V PDU
